The market needs a civilian model which could support daily requirement like lighting in the night,supply power for tools.meanwhile the tiny body make it easy to moving by small car and deploying at corner in the yard.

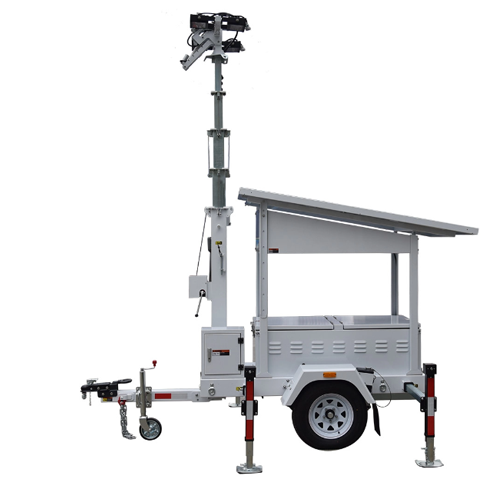

UST-300 SERIES：
1x455w Solar panel design trailer
2*60w high efficient LED light for cover 1000 square meters
Optional 4-7m manual / electric telescopic mast
Mobile trailer with Australian / European / American standard
| Technical Data | ||||
 ECO |  PLUS |  PLUG | ECO & PLUS & PLUG | |
| Model | UST-300E | UST-300S | UST-300P | UST-300PS |
| Type of Lights | 2X60W LED | 2X60W LED | 2X60W LED | 2X60W LED |
| Lights Output | DC24V, 12,000LUMS | DC24V, 12,000LUMS | DC24V, 12,000LUMS | DC24V, 12,000LUMS |
| Solar Panel | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon |
| Rate Power | 1x455W | 1x455W | 1x455W | 1x455W |
| PV Controller | MPPT 20A | MPPT 20A | MPPT 20A | MPPT 20A |
| Type of Battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery |
| No. of Battery | 2X150AH DC12V | 2X200AH DC12V | 2X150AH DC12V | 2X200AH DC12V |
| Battery Capacity | 300AH | 400AH | 300AH | 400AH |
| System Voltage | DC12V | DC12V | DC12V | DC12V |
| Mast | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Aluminium | Telescopic, Aluminium |
| Maximum Height | 4.5m/14.8ft | 4.5m/14.8ft | 4.5m/6m optional | 4.5m/6m optional |
| Wind Rating Speed | 100KM/H | 100KM/H | 100KM/H | 100KM/H |
| Lifting System | Manual / electric optional | Manual / electric optional | Manual / electric optional | Manual / electric optional |
| Battery Chagrer | / | / | 1000W | 1000W |
| Axle NO: | Single axle | Single axle | Single axle | Single axle |
| Tyre and Rim | 14 inch | 14 inch | 14 inch | 14 inch |
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual |
| Tow Hitch | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring |
| Color | Customized | Customized | Customized | Customized |
| Working Temperature | -35-60 C | -35-60 C | -35-60 C | -35-60 C |
| Operate Time | 21 hours | 28 hours | 21 hours | 28 hours |
| Charge Time (Solar) | 7 hours | 9 hours | 7 hours | 9 hours |
| Charge Time (AC) | / | / | 10 hours | 10 hours |
| Dimensions | 2356x2104x2415mm | 2356x2104x2415mm | 2356x2104x2415mm | 2356x2104x2415mm |
| Dry Weight | 650kg | 650kg | 670kg | 670kg |
| Download UST-300 pdf: |  UST-300.pdf | |||
| Download : |  UNIV Lighting towers & CCTV catalog .pdf | @ UNIV POWER | ||
| Note: Please feel free to contact with us if any more customized request ! | ||||
 | 20GP container | |||
| 40HQ container | ||||
