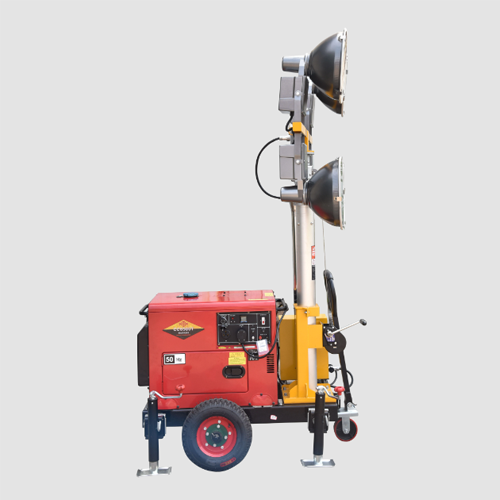

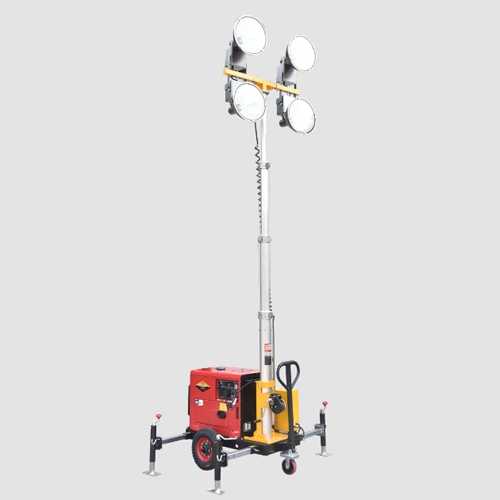

Portable Diesel Lighting Tower The UGT-1600M is a compact portable tower and generator systems designed for smaller work sites, it is an ideal solution for operators who need a fully portable yet easy to operate light system capable of illuminating large areas 1. 4*400w / 4*1000W matel halide lamps 2. 4.5M / 6.5M high aluminium mast 3. AC power output plugs 4. Low noise and fuel consumption
Portable Diesel Lighting Tower
The UGT-1600M is a compact portable tower and generator systems designed for smaller work sites, it is an ideal solution for operators who need a fully portable yet easy to operate light system capable of illuminating large areas
1. 4*400w / 4*1000W matel halide lamps
2. 4.5M / 6.5M high aluminium mast
3. AC power output plugs
4. Low noise and fuel consumption
| Model | UGT-1600 | GDQ5A-4R | UGT-4000 | UGT-2000 | UGT-10L | UGT-10QL | |||
| Lighting & Mast | |||||||||
| Type of Lights | 4x400W MH | 4x400W MH | 4x1000W MH | 4x500W LED | 4x500W LED | 8x300W LED | |||
| Lights Output | |||||||||
| Lights Voltage | AC220V | AC220V | AC220V | AC220V | AC220V/DC48V | AC220V/DC48V | |||
| Maximum Height | 4.5m | 6.5m | 7/9M | 9/10M | 9/10M | 8.5M | |||
| Wind Rating Speed | 110km/h | 110km/h | 110km/h | 110km/h | 110km/h | 110km/h | |||
| Lifting System | Manual/electric | Manual/electric | Manual/electric/hydraulic | hydraulic | hydraulic | all hydraulic | |||
| Mast Rotation | / | / | / | manual 360 | manual 360 | Hydraulic 360 | |||
| Lamp Rotation | manual | manual | manual | electric Tilt | electric Tilt | Hydraulic tilt | |||
| Engine | |||||||||
| Engine model | 186FA | 186FA | Perkins 403D-11G | Perkins 403D-11G | Perkins 403D-11G | Perkins 403D-11G | |||
| RPM | 3000/3600rpm | 3000/3600rpm | 1500/1800rpm | 1500/1800rpm | 1500/1800rpm | 1500/1800rpm | |||
| Type of engine | Air cooled | Air cooled | Water cooled | Water cooled | Water cooled | Water cooled | |||
| Rate Power | 5kw | 5kw | 10kw standby | 10kw standby | 10kw standby | 10kw standby | |||
| Fuel tank | 12.5L | 12.5L | 100L | 100L | 120L | 300L | |||
| Noise level | 68db @7m | 65db @7m | 65db @7m | 65db @7m | 63db @7m | 63db @7m | |||
| Trailer | |||||||||
| Axle NO: | Single axle | Single axle | Single axle | Single axle | Single axle | Single axle | |||
| Tyre and Rim | 12 inch | 14 inch | 15 inch | 15 inch | 15 inch | 15 inch | |||
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | |||
| Tow Hitch | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | 50mm ball / 70mm Ring | |||
| Working Temperature | -30-70 C | -30-70 C | -40-70 C | -40-70 C | -40-70 C | -40-70 C | |||
| Dimensions & Weight | |||||||||
| Dimensions | 1350x900x2550mm | 2378x1470x2490mm | 3800x1470x2490mm | 3450x1550x2500mm | 2730x1583x2500mm | 3750x1700x2500 | |||
| Dry Weight | 350kg | 650kg | 1280kg | 1550kg | 1650kg | 1920kg | |||
| 20GP container | 16 | 6 | 3 | 3 | 3 | 2 | |||
| 40HQ container | 32 | 14 | 8 | 7 | 7 | 5 | |||
| Download |  UNIV Lighting towers & CCTV Catalog.pdf | ||||||||
